PLATING LARGE COMPONENTS
AMS 2417   AMS-C-26074  ASTM B633   ASTM B545  ASTM A967  ASTM B733

Paramount Metal Finishing offers LARGE PARTS PLATING to ASTM, AMS and MILITARY Specifications for large and heavy components through the use of internal anodes. PMF has the capacity for large components such as rollers, frames, hydraulic manifolds and chambers that require partial or complete plating coverage.

Finish Anodizing Hardcoat Chemical Film Chemical Film Chemical Film Electroless Nickel Bright Tin Zinc Phosphating Heavy Zinc Phosphating Light Manganese Phosphating Zinc Plating Zinc Nickel Plating Nitric Passivation

Specification(s) MIL-A-8625 Type II Class 1 & 2 MIL-A-8625 Type III Class 1 & 2 MIL-DTL-5541 Types I & II MIL-DTL-5541 Clear RoHS MIL-DTL-5541 Clear RoHS AMS-2404, AMS-C-26074, ASTM B733 MIL-T-10727 Type I, ASTM B545 MIL-DTL-16232 Type Z Classes 1-3 TT-C-490 Type I MIL-DTL-16232 Type M Classes 1-3 ASTM B633 Types I-VI, SC 1-4 AMS-2417, ASTM B841 AMS-2700, ASTM A967

Working Dimensions / Weight Max. 70″x 60″x 24″ / 600# 70″x 60″x 24″ / 600# 70″x 60″x 24″ / 600# 108″x 60″x 21″ / 2000# 55″ x 34″ x 31″ / 1000# 108″x 60″x 21″ / 2000# 108″x 60″x 21″ / 2000# 33″ x 56″ x 33″ / 2500# 132″ x 50″ x 23″ / 2500# 132″ x 50″ x 23″ / 750# 132″ x 50″ x 23″ / 1000# 108″x 60″x 21″ / 2000# 108″x 60″x 21″ / 2000#

PLATING LARGE PARTS

Electroless Nickel Plating

Zinc Nickel Plating

Zinc Plating w/Internal Anodes

Nitric Passivation

Electroless Nickel Plating

MIL-DTL-5541 chemical film is a conversion coating to stop aluminum from oxidizing. It is an excellent pretreatment for primer and paints to adhere to. Chemical film increases corrosion protection and adhesion on machinable aluminum alloys and aluminum casting alloys. Chemical film is a cost effective solution for corrosion and a paint base that in many cases eliminates the need for a primer or topcoats such as wet paint or powder coating. It is also used as an adhesion enhancing coating for bonding with adhesives and form in place gaskets.

There are 2 Types of MIL-DTL-5541 and two classes:

• MIL-DTL-5541 Type l Class 1
• MIL-DTL-5541 Type l Class 2
• MIL-DTL-5541 Type II Class 1
• MIL-DTL-5541 Type II Class 2

MIL-C-5541 is similar to MIL-DTL-5541 in Type and Class with the exception that MIL-C-5541 is always a hexavalent chromium coating. Other similar chemical film specifications are MIL-DTL-81706, ASTM B449, ASTM B921, AMS 2473 and AMS 2474.

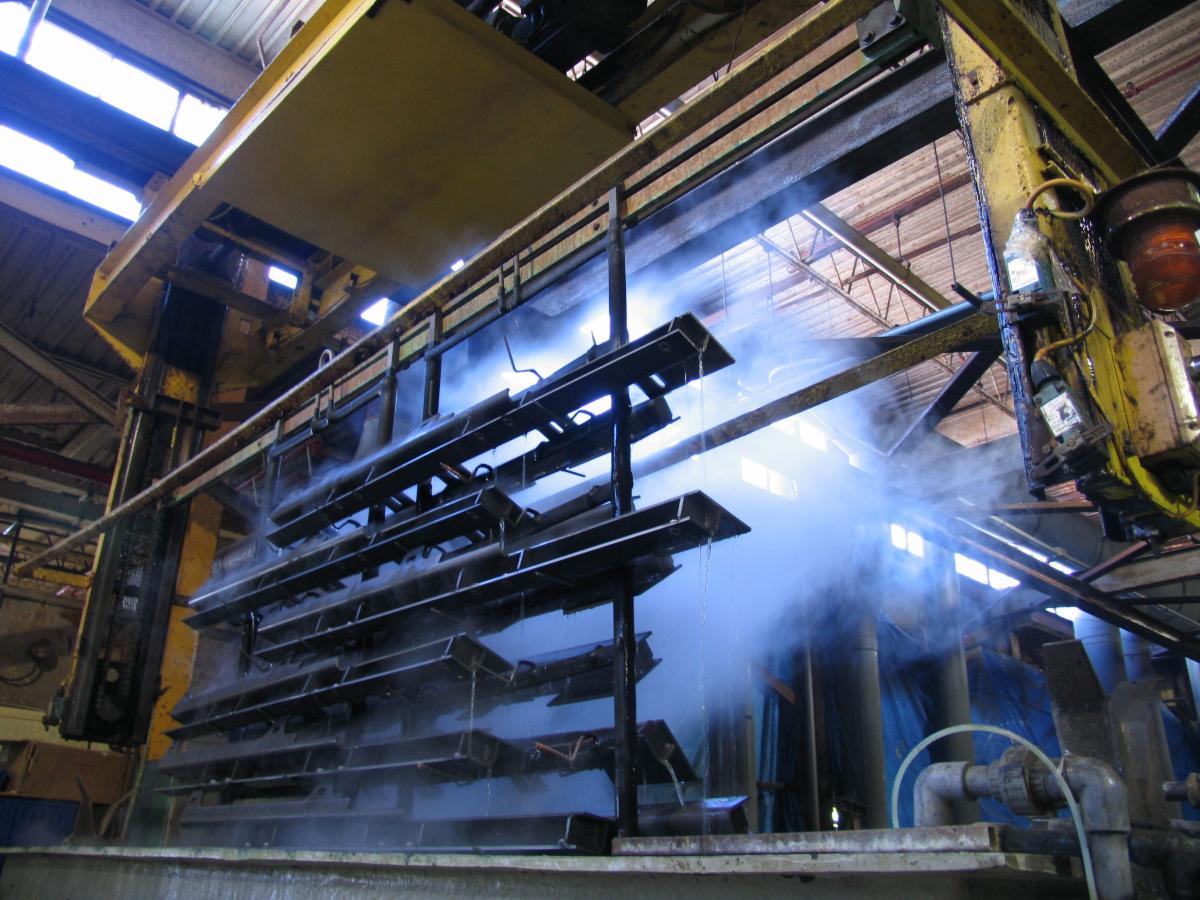

Large Parts Capability-Rack and Barrel

Paramount has the capability to process large parts in Chemical Film:

• 9 ft long x 48 inches deep and 18 inches wide
• 6 ft long x 40 inches deep and 30 inches wide
• 5 ft long x 48 inches deep and 22 inches wide
• NADCAP certified
• ITAR registered
• ISO 9001 registered

Paramount Metal Finishing is a NADCAP certified metal finisher for all MIL-DTL-5541 which is required for most aerospace components, types and classes. Paramount is also ITAR registered and performs these processes on critical military electronics as a painting and powder base coating. Chemical Film is applied as well on ordnance components as a final finish. PMF applies these coating for many commercial purposes such as cast electronic housing, medical electronics cabinets and other hardware as a final finish or a paint base.

Paramount Metal Finishing is a specialist in chemical film and is an integrated coating applicator to ASTM, AMS and Military Specifications. We have capabilities to Plate, Anodize, Hard Coat Anodize, Sanchem, Conversion Coat, Paint, Powder Coat and Dry Film Lube in one location.

NADCAP – Aerospace Quality Systems (AC7004)

---

NADCAP – Chemical Processing

Paramount Metal Finishing is proud to announce that in January 2022 we passed our ISO 9001 surveillance audit. In February 2022 we passed our NADCAP reaccreditation audit. Paramount Metal Finishing is committed to providing to our customers the very best in quality.

Please see below link:

ISO 9001: ParamountMetalFinishing-ISO-9001.pdf

NADAP:https://paramountmetalfinishing.com/20220308-nadcap/

Paramount Metal Finishing is a specialist in plating and painting as well as a coating applicator to ASTM, AMS and Military Specifications. We have capabilities to Plate, Anodize, Hard Coat Anodize, Sanchem, Conversion Coat, Paint, Powder Coat and Dry Film Lube in one location. Paramount is NADCAP for chemical film MIL-DTL-5541 types I and II; Anodizing MIL-A-8625, MIL-PRF-8625.

Paramount Metal Finishing is pleased to announce our continued commitment in securing your sensitive data, with the renewal of our ITAR compliance registration for 2021-2022.

Please see below link:

ITAR Registration

Paramount Metal Finishing is a specialist in plating and painting finishes as well as a coating applicator to ASTM, AMS and Military Specifications. We have capabilities to Plate, Anodize, Hard Coat Anodize, Sanchem, Conversion Coat, Paint, Powder Coat and Dry Film Lube in one location.  Paramount is also NADCAP for chemical film MIL-DTL-5541 types I and II; Anodizing MIL-A-8625.

Thank you and please contact us with any questions. Visit our website www.pmf1.com or email us at sales.paramount@pmfnj.com   Tel: 908-862-0772
